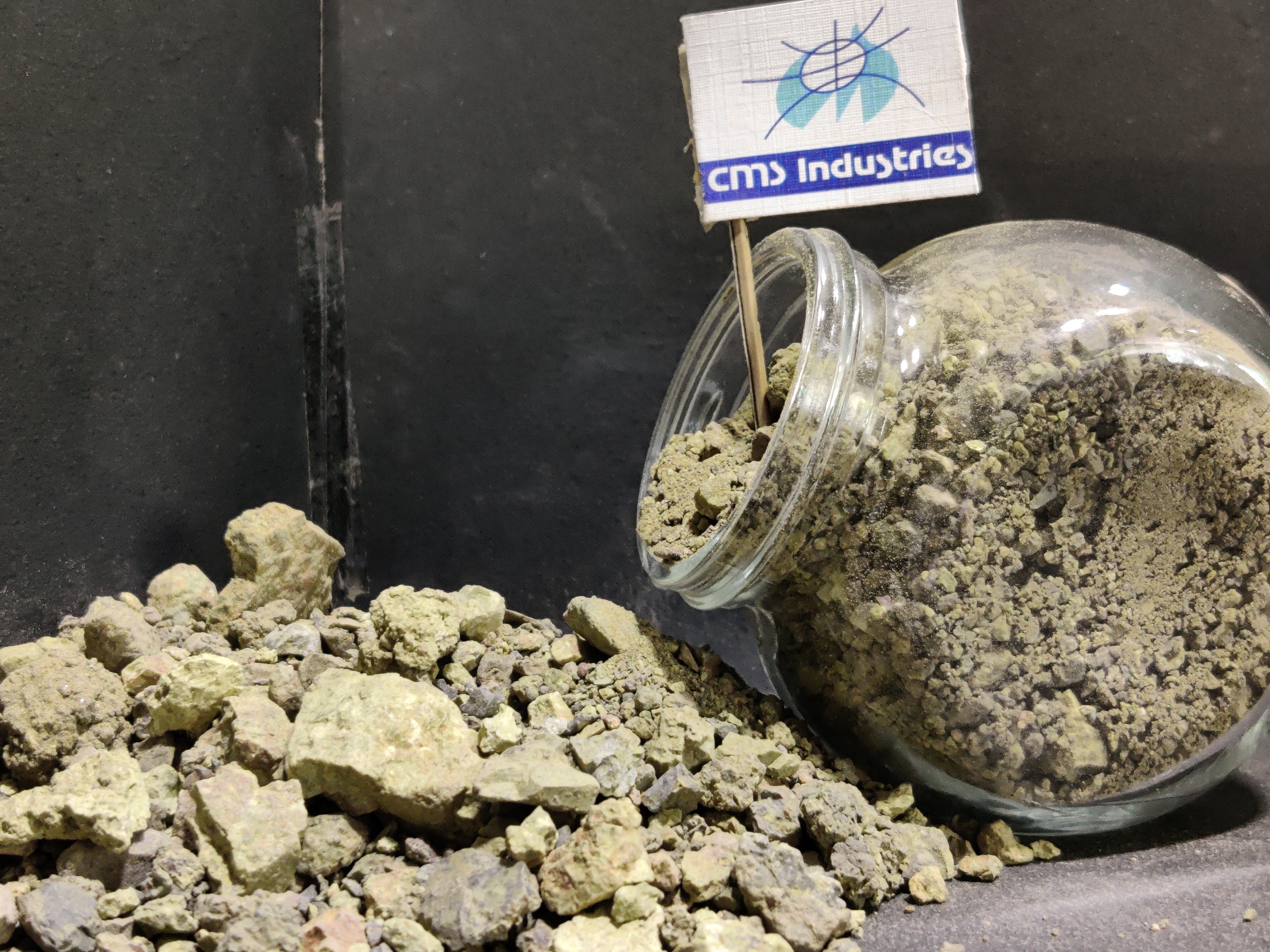

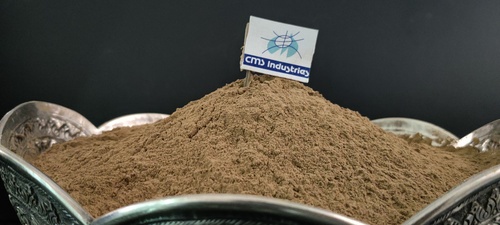

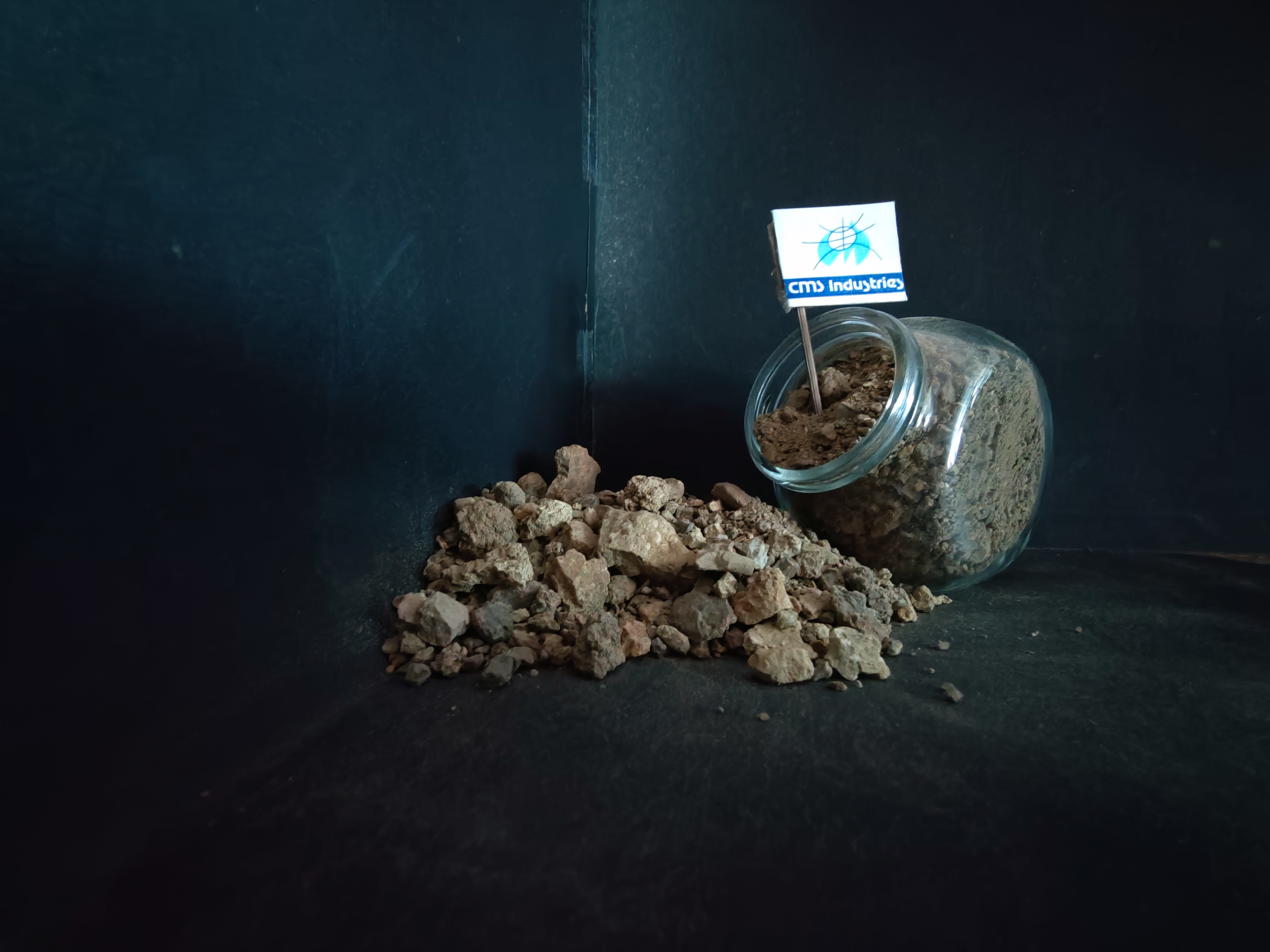

Geosynthetic Clay Linear Grade Bentonite Lumps

Get a Price/Quote

MOQ : 28 MT Metric Tons

Geosynthetic Clay Linear Grade Bentonite Lumps Specification

Product Type
Bentonite Products

Density
1100 Gram per cubic centimeter(g/cm3)

Strength
High Swelling Capacity, Shear Strength > 10 kPa

Moisture
Up to 12%

Dimension (L*W*H)
Custom sizes available, typical: 5m x 1m x 10mm

Appearance
Granular Lumps

Application
Landfill Liners, Pond Lining, Construction Waterproofing, Geoenvironmental Protection

Color
Gray to Brown

Tensile Strength
> 500 N/5cm

Cation Exchange Capacity (CEC)
> 70 meq/100g

Montmorillonite Content
>75%

pH Value
8.5 to 10.5

Packaging
Jumbo Bags or as per customer requirements

Water Absorption
Up to 600% of dry weight

Purity
>90%

Shelf Life
24 months under proper storage

Solubility
Insoluble in water, swells upon wetting

Permeability
Low hydraulic conductivity, 1.0 x 10 m/s

Geosynthetic Clay Linear Grade Bentonite Lumps Trade Information

Minimum Order Quantity
28 MT Metric Tons

FOB Port
MUNDRA

Payment Terms
Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C), Delivery Point (DP), Days after Acceptance (DA)

Supply Ability
26000 Metric Tons Per Month

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
Customized and durable packaging, 25kgs & 40 kgs paper bags with liner, PP bags with liner 25 kgs & 50 kgs With and Without pallets, Jumbo bags in 1000 kgs, 1250 kgs, 1350 kgs, 1375kgs & 1400 kgs.

Main Export Market(s)
Australia, North America, Eastern Europe, Western Europe, Africa, Middle East, South America, Asia, Central America

About Geosynthetic Clay Linear Grade Bentonite Lumps

Indiaas one of the largest bentonitemines owner, processor and exporter. We are exporting super premium qualityBentonite at competitive prices with prompt shipments. We provide all types ofpacking with customized printing options. Bentonite finds its applications inGeosynthetic Clay liner which is widely used in Municipal Solid WasteLandfills. Geosynthetic clay liner is a woven fabric-like material used for thelining of landfills. Because of a very low hydraulic conductivity of Bentonite,it is used exhaustively in Geosynthetic clay liner. The ability of GCL to retain seepage insideof the landfill is dependent on hydraulic conductivity. A regular GCLconstruction involves two layers of geosynthetics physically held together bystitching or the use of chemical adhesive with a layer of processed Sodiumbentonite sandwiched between them. GCLs act like carpets by obstructing wasteand liquid containment. Our provided all bentonite is mined in the Kachchh aGujarat, India.

WHY CMS INDUSTRIES?

CMS INDUSTRIESas GCL grade bentoniteenables self-repair due to its swelling properties and acts effectively as abarrier material for liners. It also exhibits strong sealing properties andminimizes leakages. CMS Bentonite which has more than 70% of montmorillonite,is considered better and used popularly in GCLs.

Superior Waterproofing and Barrier Solution

Geosynthetic Clay Linear Grade Bentonite Lumps offer premium impermeability due to their impressive low hydraulic conductivity, making them highly effective for landfill liners and pond sealing. Their high swelling capacity ensures complete sealing of spaces, preventing leakage and contamination. The product's gray to brown granular lumps adapt easily to site-specific projects, delivering consistent performance in geoenvironmental applications.

Flexible Application and Customization

With customizable dimensions, typically 5m x 1m x 10mm, these bentonite lumps suit various construction and environmental protection needs. Manufacturers and suppliers ensure tailored packing in jumbo bags or per customer specifications, facilitating convenient handling and installation. Their versatility covers a wide spectrum of uses, from landfill lining to water containment solutions.

FAQ's of Geosynthetic Clay Linear Grade Bentonite Lumps:

Q: How is the Geosynthetic Clay Linear Grade Bentonite used in landfill liners and pond lining?

A: The bentonite lumps are placed as a protective barrier in landfill liners and ponds to prevent liquid migration. Upon wetting, their high swelling capacity allows them to expand and fill gaps, resulting in an effective waterproof seal that minimizes leakage and environmental contamination.

Q: What benefits does the high montmorillonite content and low hydraulic conductivity provide?

A: Montmorillonite imparts excellent swelling and absorptive properties, while the low hydraulic conductivity (1.0 x 109 m/s) ensures superior impermeability. Together, these attributes guarantee the material efficiently prevents fluid passage, making it ideal for containment applications.

Q: Where can Geosynthetic Clay Bentonite Lumps be installed?

A: These lumps are suited for installation in landfill liners, pond waterproofing, construction sites requiring water barriers, and geoenvironmental protection areas. Their adaptability to custom dimensions enables effective use in various project locations.

Q: What is the process for applying Bentonite Lumps in construction waterproofing?

A: Application typically involves spreading the lumps over the designated area, ensuring even coverage. Once hydrated, the lumps swell and fuse, creating a dense, impermeable layer that acts as a reliable moisture barrier for construction foundations and underground structures.

Q: When should Geosynthetic Clay Bentonite be replaced?

A: If the integrity of the barrier is compromised due to extreme mechanical damage or after the recommended shelf life of 24 months under proper storage conditions, replacement is advised to maintain optimum performance.

Q: What packaging and dimensions are available for bulk orders?

A: The product is offered in jumbo bags or tailored packaging according to customer requirements. Dimensions can be customized, with typical sizes being 5m x 1m x 10mm, allowing for project-specific flexibility.
